Some figures on the last Glasstec.



The show held in October 2018 in Dusseldorf saw a growth of almost 5% in the number of visitors, slightly lower than the records of 2012 and 2014.



The show is truly an international fair with more than 70% of visitors coming from abroad.

On the other hand the number of exhibitors is in withdrawal (figures not given by the organizer) with some hall not completely filled

There are no translations available.



Vente société installation de miroirs sur le marché du sport





Une petite société qui vend et installe sur toute la France des miroirs destinés à des applications sportives est en vente. Quelques informations supplémentaires sur le lien suivant.





Vente et installation de miroirs sur le marché du sport



Je reste à votre disposition si vous souhaitez plus d'informations ou rentrer en contact avec le dirigeant de cette société.

Glass@comascotec.com ou 06 64 73 63 77

New options for Battellino robot for double glazing



- BAR CODE READER: this allow to the customer to create bar codes that can give the machines all the information about: Type of frame ( aluminum stainless steel) thickness of the 1^ 2^ and in case of triplex 3^ glass; Thickness of the frame; information if the glass is a simple double of a triplex.

- SHAPED GLASS a special environment on the panel ( see attachments) allow the customer to choose from different kind of shapes of glass to work.

- MONUMENTAL GLASS opportunity to work also frames of only 4 mm, this device is particularly interesting for the companies that work with restoration of old buildings. Really interesting because this kind of glasses are really difficult to job well also manually.

-SPEED faster then in the pass the new version runs at 18 mt/min also the working of the corners was modified to run faster ( a glass of 100x80cm can be done in approximately 45 sec.

- NEW TOUCH SCREEN PANEL if in the older machines were equipped with a commercial PC, the new models are equipped with an Industrial panel, more powerful and more reliable, like in the past, also this new touch can be delivered in the language of the customer.

- NEW PUMPS thanks to a new supplier that helped us creating with us a special pump for our robot we have had the opportunity to offer the robot with a better price

- 4.0 MACHINE the machine can be certificated as 4.0 industrial machines that means higher score to access to European founds.



For more information glass@comascotec.



Technical news for Battellino Italian machines manufacturer

- STRONGER INLET AND OUTLET ARMS we change the system of inlet and outlet conveyor to allow to our machine to can sustain more weight following the requests of our customers.

- NEW GASKET SYSTEM  to help our customers to maintain in better conditions their machines, we modified the gasket set of our spindles, to avoid more and better any problem of leak of water.

- NEW WIDE TOUCH SCREEN we improved our machine with a multilingual wide touch screen. The panel, equipped with our new software divided into environments,  gives to the operator the opportunity of set easily the speed of work, the thickness of the glass, the operations of the pneumatic motors and the working of the water pump moreover shows to the customer , the total and partial meters worked by the machine, the way of working of the machine in each phase of work, helping him also in the maintenance of the parts.

- NEW SYSTEM OF GUIDES FOR THE DIAMOND AND POLISHING MOTORS,  a new system of guides for the motors give them more stability to improve more possible the quality of the glass.



More information on glass@comascotec.com

Enlevée

Belts machines



It is the basic machine for every glazier working in glass processing. And even with the arrival early seventies of the straight line edging and beveling machines, they did not disappear from the glass workshops.

They work with an abrasive belt moving between rolls and with an adjustable speed in front of the glass to process. Changing the belt grit size it is this way possible to process a glass up to polishing and even up to bright polishing (with a cork belt or cerium oxide belt).

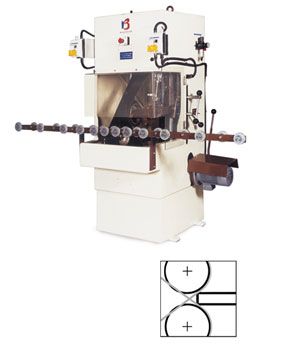

Machine with 2 belts from the market leader Baudin

They are mainly on the market two different belts machines, machines with single belt and machines with 2 belts.

The 2 belts machines are equipped with 2 different belts located at 90°, allowing to cut the 2 opposite seams of a glass sheet in only one operation.

A belt machine is a semi-automatic machine where a trained operator can carry out all the main processing, even a shaped bevel for a very skilled operator (but the bevel polishing).

They are supplied with a table or with rolls on line to help the operator to have a right position for the glass.

The speed for the belts are generally 30 meters/second for diamond or similar abrasive belts, 20 meters/second for the polishing belts and 10 meters/second for the bright polishing belts (cerium oxide belts)
