Some figures on the last Glasstec.



The show held in October 2018 in Dusseldorf saw a growth of almost 5% in the number of visitors, slightly lower than the records of 2012 and 2014.



The show is truly an international fair with more than 70% of visitors coming from abroad.

On the other hand the number of exhibitors is in withdrawal (figures not given by the organizer) with some hall not completely filled

There are no translations available.



Vente société installation de miroirs sur le marché du sport





Une petite société qui vend et installe sur toute la France des miroirs destinés à des applications sportives est en vente. Quelques informations supplémentaires sur le lien suivant.





Vente et installation de miroirs sur le marché du sport



Je reste à votre disposition si vous souhaitez plus d'informations ou rentrer en contact avec le dirigeant de cette société.

Glass@comascotec.com ou 06 64 73 63 77

New options for Battellino robot for double glazing



- BAR CODE READER: this allow to the customer to create bar codes that can give the machines all the information about: Type of frame ( aluminum stainless steel) thickness of the 1^ 2^ and in case of triplex 3^ glass; Thickness of the frame; information if the glass is a simple double of a triplex.

- SHAPED GLASS a special environment on the panel ( see attachments) allow the customer to choose from different kind of shapes of glass to work.

- MONUMENTAL GLASS opportunity to work also frames of only 4 mm, this device is particularly interesting for the companies that work with restoration of old buildings. Really interesting because this kind of glasses are really difficult to job well also manually.

-SPEED faster then in the pass the new version runs at 18 mt/min also the working of the corners was modified to run faster ( a glass of 100x80cm can be done in approximately 45 sec.

- NEW TOUCH SCREEN PANEL if in the older machines were equipped with a commercial PC, the new models are equipped with an Industrial panel, more powerful and more reliable, like in the past, also this new touch can be delivered in the language of the customer.

- NEW PUMPS thanks to a new supplier that helped us creating with us a special pump for our robot we have had the opportunity to offer the robot with a better price

- 4.0 MACHINE the machine can be certificated as 4.0 industrial machines that means higher score to access to European founds.



For more information glass@comascotec.



Technical news for Battellino Italian machines manufacturer

- STRONGER INLET AND OUTLET ARMS we change the system of inlet and outlet conveyor to allow to our machine to can sustain more weight following the requests of our customers.

- NEW GASKET SYSTEM  to help our customers to maintain in better conditions their machines, we modified the gasket set of our spindles, to avoid more and better any problem of leak of water.

- NEW WIDE TOUCH SCREEN we improved our machine with a multilingual wide touch screen. The panel, equipped with our new software divided into environments,  gives to the operator the opportunity of set easily the speed of work, the thickness of the glass, the operations of the pneumatic motors and the working of the water pump moreover shows to the customer , the total and partial meters worked by the machine, the way of working of the machine in each phase of work, helping him also in the maintenance of the parts.

- NEW SYSTEM OF GUIDES FOR THE DIAMOND AND POLISHING MOTORS,  a new system of guides for the motors give them more stability to improve more possible the quality of the glass.



More information on glass@comascotec.com

Banner
Banner

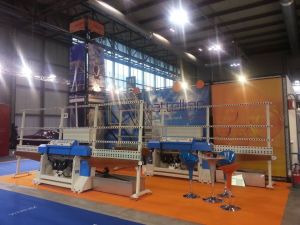

Straight line edging machines for flat glass processing. Battellino

Rectiligne-Battellino-verre-plat

Italian small and medium straight line edging machines with very competitive selling price.



Next to the big names on world market from flat glass processing machines manufacturers there are some other very competitive Italian companies which try to be the best on small segments of the market. Battellino is one of these very interesting Italian companies.

Battellino does not propose very fast industrial flat glass processing machines and manufactures only 4 different straight line cup wheels edgers.  Machines with 4  cup wheels, 5 wheels, 6 wheels and the last novelty the FP7 with seven wheels for small and middle sizes glaziers.

Central conveyor (the most important part of a straight line edging machine) is manufactured with pads slidding on stainless steel (tempered steel) witout bearings. Moreover the pads are  covered by vulcanized rubber.

Both the tank of wheels and the tank of water for this flat glass edger is made with stainless steel, while the pipes for the wheels cooling are made by copper.



There are very strong straight line edging machines basically electro mechanical but with a smart PLC to manage and adjust  the machine edger.

Different options are available (inlet conveyor adjustment for glass removal, inlet and outlet conveyors lenght, racks height, additionnal tanks...).

The machines selling prices are really competitive !!!

Rectiligne-verre-plat-Battellino

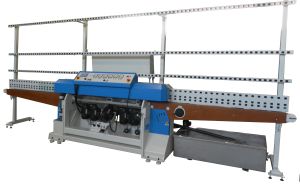

Straight line edging machine 6 wheels for glazier

VIDEO

Moreover we can supply wheels for Battellino straight line edging machines.

Battellino manufactures also  bevelling machines and periipheral machines for insulated glass (IG) (butyl machines, turning table, salt filler, mono or bi-componat pomps fully automatic or manual…).

The bevelling machines

Besides the straight line edging machines for flat glass processing range, Battellino has also designed a straight line bevelling machine, with always the same philisophy. To propose strong bevelling machine but with a very competitive selling price.

Five wheels machine working with fix angle. More than 85 % of the bevel are carried out with a 6° angle. So Battellino proposes a straight line bevelling machine with 6°  fixed bevel angle.


To contact directly  Battellino or ask for an offer.

Battellino  P.I.P. Rivo 33026 Paluzza (UD) Italia
Telephone: 0039 0433 771714
Fax: 0039 0433775053
Mail: This e-mail address is being protected from spambots. You need JavaScript enabled to view it
WWW.BATTELLINO.IT
Sky.pe: BATTELLINO.ELEONORA

You can also contact us directly on This e-mail address is being protected from spambots. You need JavaScript enabled to view it or by phone 00 33 664 73 63 77. Merci.

Battellino manufactures also a range of peripheral machines for insulated glass (IG).

Butyl machines range.

Battelliono proposes 2 machines

Butyl machine 1 Kg with adjustable nozzle opening from 6 mm up to 30 mm; and adjustable belt speed up to 18 meters per minute

Butyl machine 7 Kg with USB inlet,  adjustable nozzle opening from 6 mm up to 30 mm; and adjustable belt speed up to 36 meters per minute

Automatic selling robot.

Managing a mono or bi-component pomp this automatic machines can carry out the sealing in an automatic way.

Turning table
